Prodigy ETM4 Module


  • One ARM ETM4 interface

  • One ARM JTAG interface

  • One 9-pin UART interface

  • One 3-pin UART interface

  • One SD card socket

  • One Micro SD card socket

  • Occupies one Prodigy connector



Prodigy GPIO Extension Module


  • Two RS232s interfaces

  • Two I2C interfaces

  • One Mictor-38 connector

  • One ARM JTAG interface

  • 8 LEDs, 4 push buttons & 8 Switches

  • Two 20*2 pin headers

  • 2 channels of SerDes through MMCX connectors

  • Occupies one Prodigy connector



Prodigy Processor Peripheral Module Plus


  • One TSOP48 NAND Flash socket

  • One TSOP56 NOR Flash socket

  • One SOIC16 QSPI Flash (1.8V or 3.3V) socket

  • Two SOIC8 QSPI Flash (1.8V or 3.3V) socket

  • One WSON8 SPI Flash (1.8V) socket

  • One SOIC8 I2C EEPROM (1.8V or 3.3V) socket

  • One MicroSD card socket

  • One ARM JTAG connector

  • One ARM ETM debugger trace connector

  • 3 LEDs and 2 push buttons

  • Occupies one Prodigy connector



Prodigy Processor Peripheral Module


  • One NAND Flash socket

  • One NOR Flash socket

  • One SPI Flash socket

  • One I2C EEPROM socket

  • One MicroSD card socket

  • One ARM JTAG connector

  • One ARM ETM debugger trace connector

  • Two I2C interfaces

  • 4 LEDs, 4 Switches and 10 Pin Headers

  • Occupies one Prodigy connector



Prodigy PCI Interface Module


  • Provide a 32-bit 3.3V PCI Edge Connector

  • Occupies one Prodigy connector



Prodigy USB 3.0 Interface Module



  • Support host and device mode

  • Provide PIPE to Link Layer Controller

  • Provide ULPI to Link Layer Controller

  • Support UTMI-compliant/USB2.0 Certified for device operation

  • Provide 3 LEDs and 2 Push Buttons

  • Occupies one Prodigy connector



Prodigy USB3 Data Transfer Module


  • Supports USB peripheral functionality compliant with USB3.1

  • Provides one 2x7 pin header, three LEDs and one push button

  • Occupies one Prodigy connector



Prodigy USB 2.0 Interface Module


  • Support host, device and OTG mode

  • x2 16bits UTMI interface & x1 8bits ULPI interface

  • 2x5 Pin Headers on board

  • 3 LEDs on board

  • 2 Push Buttons

  • Occupies one Prodigy connector



Prodigy USB 2.0 Interface Module V2.0


  • Supports Host, Device and OTG mode

  • Easy configuration through jumper settings

  • Supports VBUS power control using an external VBUS switch

  • UTMI-compliant/USB2.0 certified for device operation

  • Operates in both USB2.0 high speed 480Mbits/s, and full speed 12Mbits/s

  • Synchronous field and EOP detection on receiving packets

  • Synchronous field and EOP generation on transmit packets

  • Ability to switch between FS (full speed) and HS (high speed) terminations and signaling

  • Supports HS identification and detection as defined by the USB2.0 Specification

  • Provides two user LEDs and two push-buttons

  • Occupies one Prodigy connector



Prodigy USB 2.0 Interface Module V3.0


  • Support device and OTG mode

  • Provide a USB2.0 UTMI PHY (USB3250)

  • Provide a USB2.0 ULPI PHY (USB3320)

  • Provide 2 LEDs and 2 Push Buttons

  • Occupies one Prodigy connector



Prodigy USB Interface Module


  • Supports USB2.0 device mode only

  • Provides one 2x7 pin header, four LEDs, one 8-pole switch and two push buttons

  • Occupies one Prodigy connector



Prodigy 3 Channel RGMII PHY Interface Module


  • 10/100/1000 BASE-T IEEE 802.3 compliant

  • Support for RGMII Interface

  • Full integrated digital adaptive equalizers, echo cancellers and crosstalk cancellers

  • Two-wire Serial Interface and MDC/MDIO

  • CRC checker, packet counter

  • Auto-calibration for MAC interface outputs

  • Occupies one Prodigy connector



Prodigy 3 Channel GMII PHY Interface Module


  • 10/100/1000 BASE-T IEEE 802.3 compliant

  • Support for GMII Interface

  • Full integrated digital adaptive equalizers, echo cancellers and crosstalk cancellers

  • Two-wire Serial Interface and MDC/MDIO

  • CRC checker, packet counter

  • Auto-calibration for MAC interface outputs

  • Occupies one Prodigy connector



Prodigy 6 Channel SGMII PHY Interface Module


  • 10/100/1000 BASE-T IEEE 802.3 compliant

  • Support 6 channels SGMII Interface

  • Full integrated digital adaptive equalizers, echo cancellers and crosstalk cancellers

  • Two-wire Serial Interface and MDC/MDIO

  • CRC checker, packet counter

  • Auto-calibration for MAC interface outputs

  • Occupies one Prodigy connector



Prodigy 6 Channel GMII PHY Interface Module


  • 10/100/1000 BASE-T IEEE 802.3 compliant

  • Support 2 channels RGMII and 4 channels GMII Interface

  • Full integrated digital adaptive equalizers, echo cancellers and crosstalk cancellers

  • Two-wire Serial Interface and MDC/MDIO

  • CRC checker, packet counter

  • Auto-calibration for MAC interface outputs

  • Occupies one Prodigy connector



Customized Prodigy Min-SAS Module V2.0


  • Convert 136 GPIOs between two Prodigy connectors

  • Convert 4 SerDes from Prodigy connector to Mini-SAS connector

  • Support synchronous and asynchronous reference clock

  • Support 10 ~ 810MHz programmable clock as reference clock

  • Support 6 SIDEBAND signals for Mini-SAS connector

  • Occupies one Prodigy connector



Customized Prodigy Min-SAS Module


  • Convert 136 GPIOs between two Prodigy connectors

  • Convert 4 SerDes from Prodigy connector to Mini-SAS connector

  • Support synchronous and asynchronous reference clock

  • Provides a 160MHz reference clock.

  • Support 6 SIDEBAND signals for Mini-SAS connector

  • Occupies one Prodigy connector



Customized 4 Channel SFP+ Module


  • Provide 4 channel SFP+ connector

  • Provides 10~810MHz on-board programmable reference clock

  • Occupies one Prodigy connector



Customized Prodigy General Peripheral Interface Module V3.0


  • Provide 5 I2C connections

  • Provides a 20-pin ARM JTAG interface

  • Provides a SGPIO interface

  • Provides a PWM pin header

  • Provide 2 SPI flash sockets

  • Provides a RJ45 to 2 UART interfaces

  • Provides a 4-bit GPIO switch

  • Support level shift for UART or ARM JTAG or SPGIO or PWM between 3.3V and 1.8V

  • Occupies one Prodigy connector



Customized 8-Chain JTAG Tool Kit


  • Supports to chain JTAG ports of up to 8 Xilinx FPGAs into one JTAG Chain

  • Provides an 8-position DIP switch

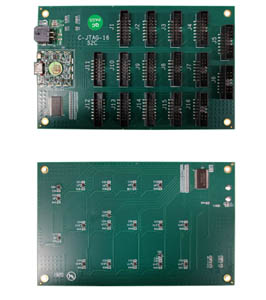

Customized 16-Chain JTAG Tool Kit


  • Supports to chain JTAG ports of up to 16 Xilinx FPGAs into one JTAG Chain
