Prodigy S8-40 Logic Systems
Products

Prodigy S8-40 Logic Systems

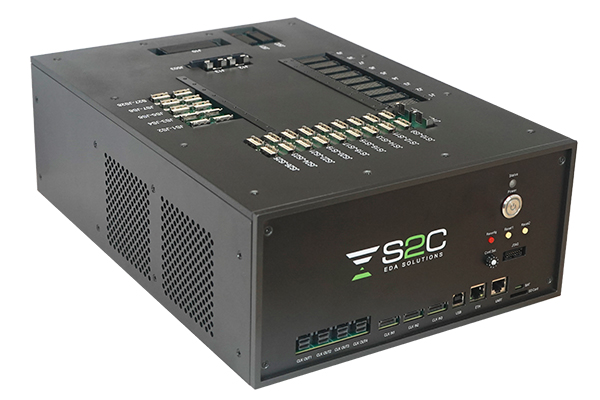

The Prodigy S8-40 Logic Systems leverages the latest AMD FPGA device and the use of high-performance I/O connectors to provide the highest performance and the most scalability for modern VLSI SoC designs. Together with the newest compile, runtime, and debug software suits, allow users to quickly bring up the prototype and improve the verification productivity.


Prodigy™ S8-40 FPGA Prototyping Systems Technical Highlights


  • Delivers up to 40 million equivalent ASIC gates

  • Flexible and extensible I/O architecture

  • Higher performance benefits the innovative verification

  • Enhanced toolchains for quick system bring-up

  • Rich portfolio of Prototype Ready Kits




Contact S2C

Prodigy™ S8-40 Logic FPGA Prototyping System Configuration Table


Prodigy™ S8-40 Logic System Configuration Table
Estimated ASIC Gates (M)40
FPGA Count 1
System Logic Cells (K)7,352
FPGA Internal Memory (Mb)891
DSP Slices14,352
External User I/Os486
GTYP(32.75Gbps)28
GTM(58Gbps (112Gbps))140
CCIX & PCIe® w/DMA (CPM5)2 x Gen5x8, CCIX
PCI Express® with CXL2 x Gen5x4
Other Connectors

APU (ARM Cortex-A72),

RPU (ARM Cortex-R5F)

DatasheetDownload


Prodigy S8-40 Logic Systems Datasheet Prodigy S8-40 Logic Systems Datasheet Download Prodigy S8-40 Logic Systems Datasheet
